Light sheet microscopy of cell sheet folding in Volvox

Developing ligh sheet microscopy for imaging and experimentation on the freshwater alga Volvox, and the carniverous plant, Utricularia.

The Idea

We are applying for financial support by the OpenPlant Fund to help us improve our light sheet microscope. The amended setup will be used by the Cambridge group for laser ablation experiments on the freshwater alga Volvox. We are using the embryogenesis in Volvox as a model for epithelial development in metazoans. Stephanie Hoehn attended an EMBO course on modelling morphogenesis at the JIC in 2015, and is attempting to use computational modelling techniques developed by Prof. Enrico Coen's group at the JIC. She and her collaborators are combining imaging, experimental and theoretical approaches to study the so-called inversion process that bears similarity to gastrulation and neurulation. The Norwich group will use the light sheet microscope to study organs of the carnivorous plant Utricularia (Bladderwort).

The Team

Dr Stephanie Hoehn,
Postdoctoral researcher, Department of Applied Mathematics and Theoretical Physics, University of Cambridge

Dr Pierre Haas,
Postdoctoral researcher, Department of Applied Mathematics and Theoretical Physics, University of Cambridge

Mrs Karen Lee,
Research Assistant, Cell and Developmental Biology, John Innes Centre, Norwich


Project Outputs

Project Report

Summary of the project's achievements and future plans

Project Proposal

Original proposal and application


Project Resources

Details of modified LSFM setup on the OpenSPIM website, under Cambridge.


Half year report June 2017

Summary

Light sheet fluorescence microscopy (LSFM) is the state-of-the-art technique to study developmental processes in vivo. LSFM causes less photo-damage than confocal microscopy enabling longer time-lapse recordings. We had previously built a LSFM setup in the Goldstein group. The purpose of this project is to improve the quality of the generated LSFM data.

Optical sectioning is achieved by moving the sample through a light sheet and thereby creating z-stacks. In our previous setup images were recorded by a single camera. Due to light absorption and scattering the images of the sample half facing away from the camera showed a significant loss in image quality. In order to correct for this loss we have added a second camera and detection arm opposing the first one and covering the second half of the sample. This improved setup is doubling the thickness of a sample for which we can acquire useful fluorescence data. This significantly increases the variety of future applications including studies on the morphogenesis of entire embryos in the multicellular micro-alga Volvox and the development of feeding structures of the aquatic carnivorous plant Bladderwort.

Report and outcomes

Dr. Stephanie Höhn and Dr. Pierre Haas (DAMTP, Cambridge) are studying embryonic cell sheet folding events in Volvox that resemble the invagination of cell sheets in animals, e.g. during gastrulation (Fig. 1A,B) [1,2]. In collaboration with Dr. Karen Lee (John Innes Centre, Norwich) we are planning to study the development of the feeding bladders of the aquatic carnivorous plant Utricularia (Bladderwort). These bladders develop within spiral shaped structures. We are using LSFM to acquire long-term time-lapse recordings of these developmental processes (Fig. 1). Dr. Lee has visited the Goldstein lab in May 2017 to acquire preliminary data (Fig. 1C).



   16.00







   Normal
   0




   false
   false
   false

   EN-GB
   X-NONE
   X-NONE




















































































































































































































































































































































































































 /* Style Definitions */
 table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0cm 5.4pt 0cm 5.4pt;
	mso-para-margin-top:0cm;
	mso-para-margin-right:0cm;
	mso-para-margin-bottom:8.0pt;
	mso-para-margin-left:0cm;
	line-height:107%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:"Calibri",sans-serif;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-bidi-font-family:"Times New Roman";
	mso-bidi-theme-font:minor-bidi;
	mso-fareast-language:EN-US;}

  Figure 1 Light sheet fluorescence microscopy of Volvox and Utricularia (Bladderwort) with a custom-built setup. A, B:  Volvox embryo undergoing invagination. The image quality is significantly lower in the sample half facing away from the camera (B). In this project we added a second detection arm to achieve a homogeneous image quality throughout the sample. Green: Chlorophyll-autofluorescence.   C:  Utricularia spiral (dotted line) from which a feeding bladder will develop. Green: GFP-tagged cell wall marker.

Figure 1 Light sheet fluorescence microscopy of Volvox and Utricularia (Bladderwort) with a custom-built setup. A, B: Volvox embryo undergoing invagination. The image quality is significantly lower in the sample half facing away from the camera (B). In this project we added a second detection arm to achieve a homogeneous image quality throughout the sample. Green: Chlorophyll-autofluorescence.  C: Utricularia spiral (dotted line) from which a feeding bladder will develop. Green: GFP-tagged cell wall marker.

Our previous custom-built LSFM setup comprised two illumination arms and a single detection arm (Fig. 2A). A laser beam is split by a beam splitter and focused through cylindrical lenses to create two light sheets that illuminate the sample from two sides. The original detection arm is oriented perpendicularly to the light sheets. Due to light absorption and scattering the data quality for the sample half facing away from the camera was significantly lower (Fig. 1B).

In this project a second detection arm was added opposing the first one (Fig. 2B) to enable sample imaging from two sides and thereby achieving a homogeneous image quality throughout the sample. The two detection arms each consist of a detection objective, a tube that encloses the light path and functions as filter holder, a tube lens and a camera with adapter-mount. The sample chamber had to be modified to add a fourth objective (the second detection objective) and a lamp had to be designed for bright field illumination (Fig. 2C). All parts of the microscope are attached to an optical breadboard. To make space for the 2nd detection arm and camera, the setup had to be translated on the bread board. The breadboard was rotated by 90 degrees for better access. For safety reasons the laser path was changed, entailing a change in the position of the beam splitter (Fig. 2B).



   16.00







   Normal
   0




   false
   false
   false

   EN-GB
   X-NONE
   X-NONE




















































































































































































































































































































































































































 /* Style Definitions */
 table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0cm 5.4pt 0cm 5.4pt;
	mso-para-margin-top:0cm;
	mso-para-margin-right:0cm;
	mso-para-margin-bottom:8.0pt;
	mso-para-margin-left:0cm;
	line-height:107%;
	mso-pagination:widow-orphan;
	font-size:11.0pt;
	font-family:"Calibri",sans-serif;
	mso-ascii-font-family:Calibri;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Calibri;
	mso-hansi-theme-font:minor-latin;
	mso-bidi-font-family:"Times New Roman";
	mso-bidi-theme-font:minor-bidi;
	mso-fareast-language:EN-US;}

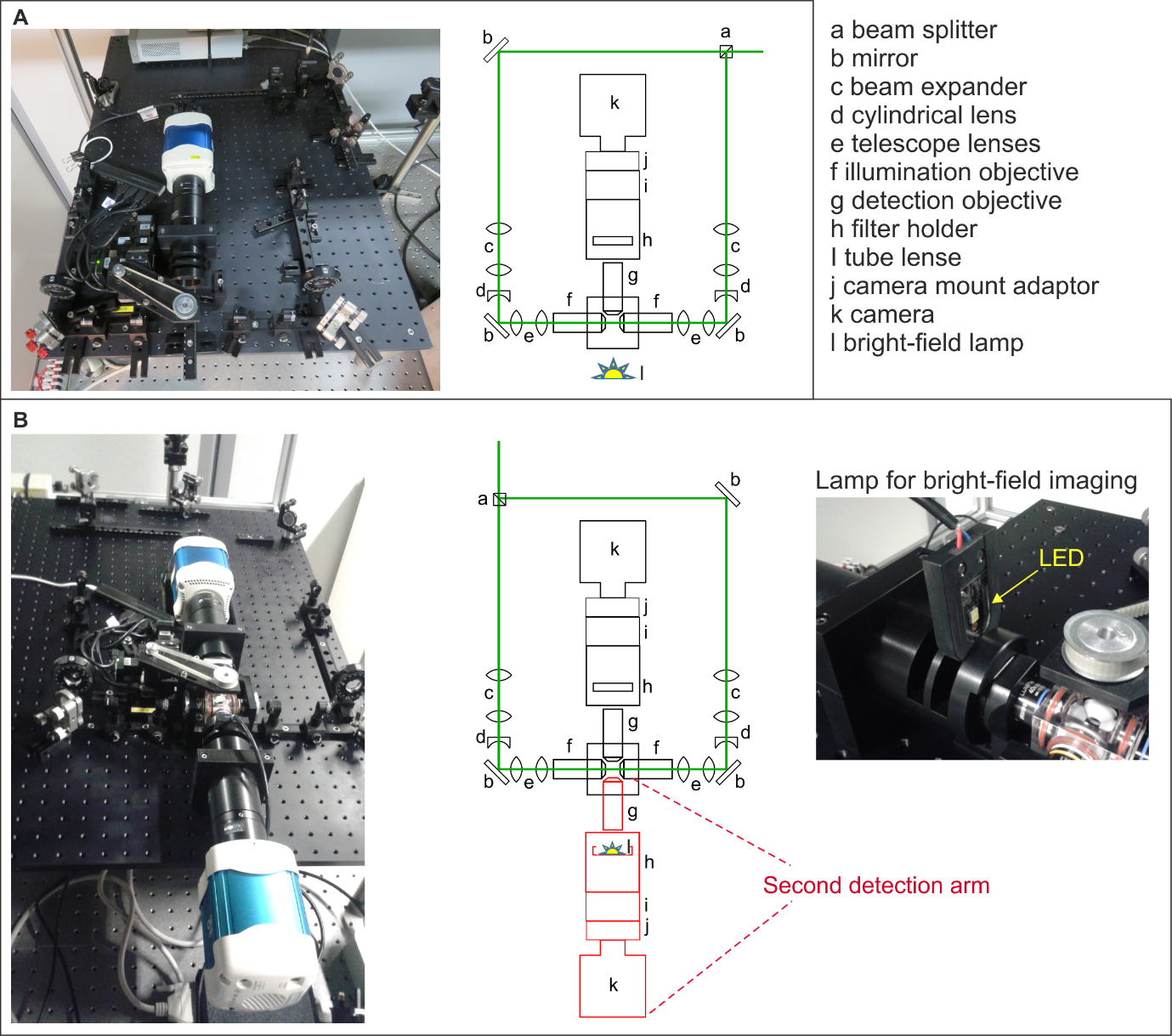

    Figure 2 Adding a second camera and detection arm to a custom-built light sheet microscope. A:  Previous LSFM setup. The laser beam is split by a beam splitter and focused through cylindrical lenses to create two light sheets that illuminate the sample from two sides. The original detection arm is oriented perpendicularly to the light sheets.  B:  The second detection arm increases the quality of 3-dimensional datasets by imaging samples from two sides. An LED lamp was designed to be temporarily inserted into the filter holder during sample positioning.

Figure 2 Adding a second camera and detection arm to a custom-built light sheet microscope. A: Previous LSFM setup. The laser beam is split by a beam splitter and focused through cylindrical lenses to create two light sheets that illuminate the sample from two sides. The original detection arm is oriented perpendicularly to the light sheets. B: The second detection arm increases the quality of 3-dimensional datasets by imaging samples from two sides. An LED lamp was designed to be temporarily inserted into the filter holder during sample positioning.

Details on our modified LSFM setup including photographs and drawings of the self-built parts have been made publicly accessible on the website of the OpenSPIM platform (see “Cambridge” on http://openspim.org/Who_has_an_OpenSPIM%3F).

Self-built parts:

  • All self-built parts were manufactured by the in-house machine shop at DAMTP.
  • Sample chamber: We designed a sample chamber to hold fluid medium with inlets for the 4 water dipping objectives.
  • Objective holder: we added a fourth objective holder to the metal case enclosing the sample chamber.
  • Brightfield lamp: The original space for brightfield illumination was lost when adding the 4th objective (Fig. 1). We explored different options to keep illumination (other than laser) during positioning of the sample:
    • Shining light through the top of the sample chamber did not work.
    • The objective holder for the 2nd detection objective was designed to allow for darkfield images.
    • We designed a flat LED lamp to fit in the filter holder, determined the required voltage and adjusted the power supply accordingly.
  • Tube to cover laser path and hold filters
  • Clamp to hold the detection arm
  • Filter cases
  • Custom size mirror posts

Purchased parts:

Prices for the second camera, camera mount adaptor, tube lens, objective and multi-wavelength emission filter were negotiated before purchasing them.

Follow on Plans:

We have previously been using 20x detection objectives with an N.A. of 0.5. In order to increase the resolution of our data for cell tracking we are planning to purchase a 40x, N.A. 0.5, water dipping objective LUMPLFLN40XW (Olympus, UK), priced £1,969.96. We are requesting the additional £1000 from the OpenPlant Fund to be allocated towards this 40x objective as soon as possible. The remaining £969.96 would be paid from internal funds.

We are currently integrating the second camera into the acquisition software. Both cameras will be controlled by the Multi-Camera adapter within MicroManager (https://micro-manager.org/).

We are very grateful that the OpenPlant Fund is enabling us to improve our LSFM setup and to expand our developmental studies in Volvox, Utricularia and other future model systems.


References

[1] Höhn S and Hallmann A. There is more than one way to turn a spherical cellular monolayer inside out: type B embryo inversion in Volvox. BMC Biology 9, 89 (2011).

[2] Höhn S, Honerkamp-Smith AR, Haas PA, Khuc Trong P, and Goldstein RE. Dynamics of a Volvox embryo turning itself inside out. Phys. Rev. Lett. 114, 178101 (2015).
